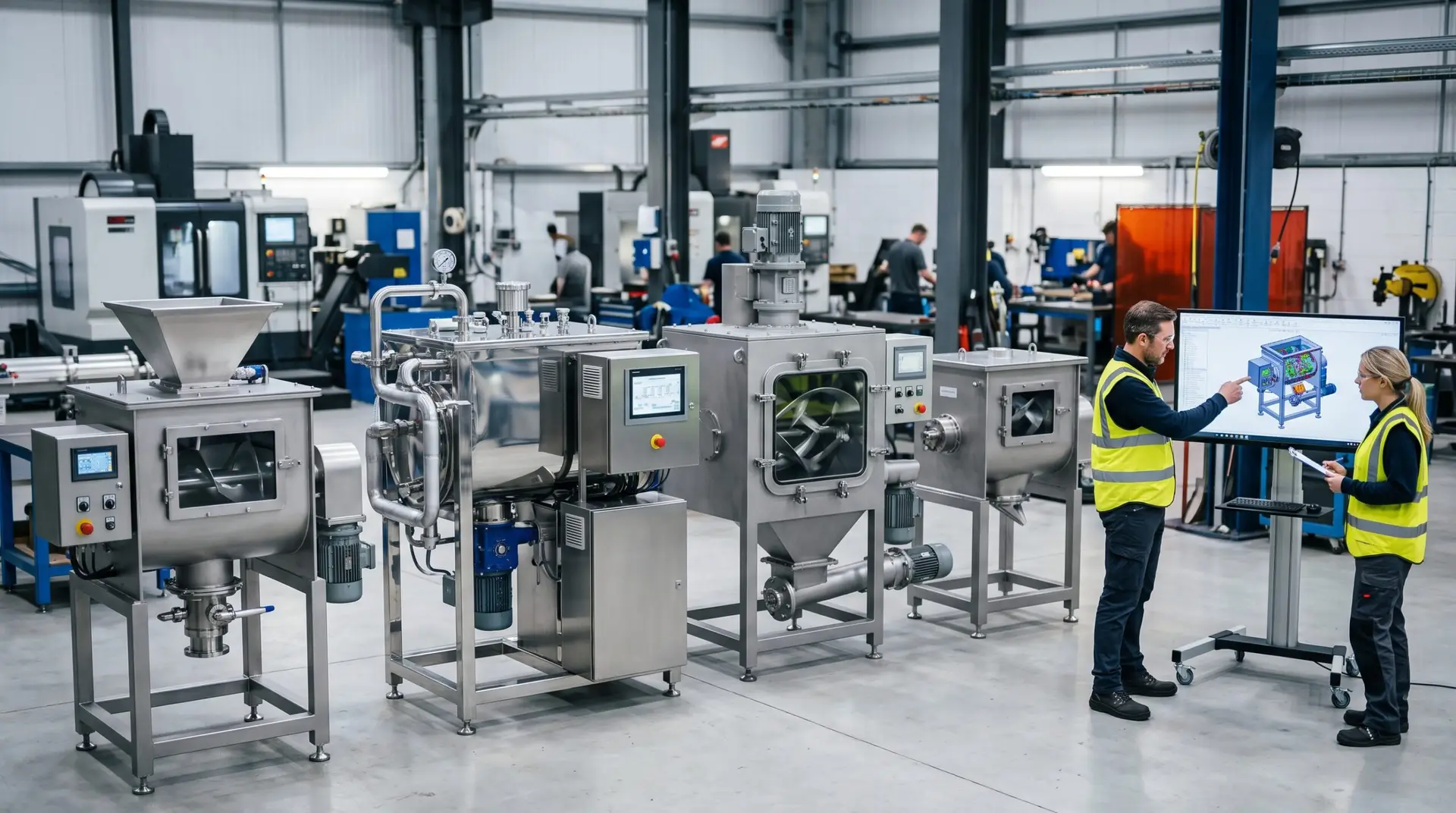

industrial mixer materials of construction - SS304, SS316, SS316L, SS317L & Beyond
Every in-stock QUICK PROPACK unit is built with SS304 stainless steel structural frame and SS316 stainless steel (industrial mixer materials of construction) on all product-contact parts - making our standard build compliant for food processing, pharmaceutical manufacturing, chemical processing, nutraceuticals, and cosmetics without any modification or upgrade.
Standard Build SS304 Frame + SS316 Product-Contact Parts
Our industrial mixer materials of construction—including SS304, SS316, SS316L, and carbon steel options—are manufactured to recognized international material standards, delivering exceptional durability, corrosion resistance, product safety, and reliable performance across a wide range of industrial mixing applications.
SS316 on all product-contact parts (standard):
- Ribbon, paddle, or plough agitator assembly
- Interior surface of the mixing trough - entire inner wall
- Central drive shaft - full length
- Discharge valve - all product-contact surfaces
- All interior welds and joints - seam-ground and polished
SS304 structural frame (non-product-contact):
- Support legs and base frame
- Exterior trough walls and end panels
- Drive motor housing and gearbox mounting
- Cover hinges, latches, and external fittings
Material Grades - Complete Guide (industrial mixer materials of construction)
Our industrial mixer materials of construction are manufactured in compliance with recognized international material standards, ensuring excellent durability, corrosion resistance, hygienic performance, and long-term reliability across food, pharmaceutical, chemical, and industrial processing applications.
| Grade | Molybdenum | Properties & best applications |
|---|---|---|
| SS304 (frame) | None | Structural frame on all standard builds. Good general corrosion resistance. Not suitable for product-contact in food or pharmaceutical applications. |
| SS316 (contact parts) | 2–3% | Standard on ALL product-contact parts. Superior chloride and acid resistance. FDA, USDA, GMP, USP Class VI compliant. Standard on every in-stock QUICK PROPACK unit. |
| Full SS316L (upgrade) | 2–3% | Low-carbon — better weld integrity, no sensitization risk. GMP pharmaceutical requiring full-vessel material certification. Available as upgrade on all models. |
| SS317L critical zones (upgrade) | 3–4% | Maximum corrosion resistance. Aggressive pharmaceutical solvents, concentrated acids where SS316L shows measurable corrosion. Contact our team. |
| Carbon steel (upgrade) | None | Heavy-duty mining, construction, agriculture. Non-food, non-pharmaceutical applications. Maximum abrasion resistance. |
| Hastelloy C-276 (special order) | 16% | Exceptional resistance to oxidizing and reducing acids. Where all stainless steels are insufficient. Special order — contact our technical team. |
Technical Specifications - Full Model Range
Complete specifications for the full QUICK PROPACK range — 3.5 to 350 cu ft in U.S. stock, 1,000+ cu ft on custom order. All dimensions and weights in U.S. standard units — cubic feet, feet, and pounds.
| Capacity (cu ft) | Motor (HP) | Speed (RPM) | Max batch (lbs)* | Length (ft) | Width (ft) | Height (ft) | Availability |
|---|---|---|---|---|---|---|---|
| 3.5 cu ft | 2 HP | 60 RPM | 70–175 lbs | ~5 ft | ~1.6 ft | ~2.3 ft | ✓ In stock — FL, CA, OH |
| 5 cu ft | 3 HP | 60 RPM | 100–250 lbs | ~6 ft | ~2 ft | ~3 ft | ✓ In stock — FL, CA, OH |
| 10 cu ft | 5 HP | 60 RPM | 200–500 lbs | ~7 ft | ~2.1 ft | ~3.1 ft | ✓ In stock — FL, CA, OH |
| 15 cu ft | 7.5 HP | 41 RPM | 300–750 lbs | ~7.5 ft | ~2.3 ft | ~3.4 ft | ✓ In stock — FL, CA, OH |
| 20 cu ft | 10 HP | 41 RPM | 400–1,000 lbs | ~8 ft | ~2.6 ft | ~3.9 ft | ✓ In stock — FL, CA, OH |
| 30 cu ft | 15 HP | 33 RPM | 600–1,500 lbs | ~9 ft | ~3.3 ft | ~4.8 ft | ✓ In stock — FL, CA, OH |
| 50 cu ft | 20 HP | 33 RPM | 1,000–2,500 lbs | ~11 ft | ~3.6 ft | ~5.4 ft | ✓ In stock — FL, CA, OH |
| 75 cu ft | 25 HP | 33 RPM | 1,500–3,750 lbs | ~13 ft | ~4.3 ft | ~6.4 ft | ✓ In stock — FL, CA, OH |
| 100 cu ft | 30 HP | 26 RPM | 2,000–5,000 lbs | ~14 ft | ~4.6 ft | ~6.6 ft | ✓ In stock — FL, CA, OH |
| 150 cu ft | 40 HP | 26 RPM | 3,000–7,500 lbs | ~15 ft | ~5.2 ft | ~6.9 ft | ✓ In stock — FL, CA, OH |
| 200 cu ft | 50 HP | 26 RPM | 4,000–10,000 lbs | ~17 ft | ~5.9 ft | ~7.2 ft | ✓ In stock — FL, CA, OH |
| 250 cu ft | 60 HP | 20 RPM | 5,000–12,500 lbs | ~18 ft | ~6.2 ft | ~7.9 ft | ✓ In stock — FL, CA, OH |
| 300 cu ft | 75 HP | 20 RPM | 6,000–15,000 lbs | ~20 ft | ~6.6 ft | ~8.5 ft | ✓ In stock — FL, CA, OH |
| 350 cu ft | 100 HP | 20 RPM | 7,000–17,500 lbs | ~22 ft | ~6.9 ft | ~9.2 ft | ✓ In stock — FL, CA, OH |
| 500 cu ft | 125 HP | 16 RPM | 10,000–25,000 lbs | ~26 ft | ~7.5 ft | ~10 ft | Contact us |
| 750 cu ft | 150 HP | 14 RPM | 15,000–37,500 lbs | ~30 ft | ~8.5 ft | ~11 ft | Available to order |
| 1,000 cu ft | 200 HP | 12 RPM | 20,000–50,000 lbs | ~35 ft | ~9.5 ft | ~12 ft | Available to order |
| 1,000+ cu ft | Custom | Custom | 50,000+ lbs | Custom | Custom | Custom | Contact us — 8–10 wks |
* Batch weight based on ~50 lbs/cu ft bulk density at 50% loading. Actual batch weight varies significantly by material. Always provide your material's bulk density for accurate sizing.
How to Calculate the Right Mixer Size for Your Batch Weight
Formula:
Required mixer size (cu ft) = Batch weight (lbs) ÷ Bulk density (lbs/cu ft) ÷ Loading ratio (0.40 to 0.70)
Example: 3,000 lbs of spice blend ÷ 38 lbs/cu ft bulk density ÷ 0.55 loading ratio = 143 cu ft → Select the 150 cu ft model.
Not sure about your material's bulk density or the right loading ratio? Contact our team — we help you size the correct mixer for your exact batch weight requirement before you order. +1 (216) 329-3298 | office@quickpropack.com
Customization & Configuration Options
Every QUICK PROPACK mixer can be configured to your exact process requirements. All options below are available on both in-stock and custom-order units.
| Option category | Available options | Best for |
|---|---|---|
| Liquid addition | Spray nozzles, metered dosing pumps, multi-point injection, heated liquid lines | Wet granulation, binder addition, flavor/color liquid incorporation, oil and fat addition |
| Thermal control | Full welded jacket, dimple jacket, single or multi-zone, steam / hot water / thermal oil / chilled water, external insulation | Chocolate blending, nut butter production, heat-sensitive pharma blending, wax incorporation |
| Vacuum systems | Vacuum-rated vessel (up to 29.5 in Hg), vacuum pump and condenser, inert gas purge (N2 or Ar), solvent recovery column | Drying after wet granulation, oxygen-sensitive materials, solvent recovery, heat-sensitive processing |
| Discharge options | Manual flat slide gate (standard), pneumatic gate, butterfly valve, flap valve, ball valve, bomb bay door, screw-assisted discharge | Automated lines, poor-flowing materials, allergen control, direct bag filling below discharge |
| Sealing systems | Packing seals (standard), mechanical seals, pneumatic+packing for ultrafine powders, gas purge seals, external bearing mounting | Ultrafine powder retention, GMP contamination prevention, inert atmosphere processing |
| Safety & ATEX compliance | ATEX explosion-proof motors and controls, OSHA shaft guards, safety grating interlocks, NEMA 4 or NEMA 12 enclosures | Flammable powder environments, regulated manufacturing, OSHA compliance, pharma cGMP |
| Sanitary finishes | 2B standard, #4 brushed, #7 mirror polish, USDA Dairy electropolish, CIP spray systems, FDA-compliant gaskets | Pharmaceutical GMP, food and beverage, cosmetics, allergen-controlled environments |
| Automation & PLC | VFD speed control, touchscreen HMI, recipe management, 21 CFR Part 11 batch data logging, SCADA integration | GMP pharma batch documentation, multi-product facilities, automated batch control |
| Structural options | Elevated platform frame, load cells for batch weighing, forklift pockets, skid-mounted design, bag dump station | Space-constrained facilities, automated weighing, gravity discharge to downstream equipment |
Mixer Selection Guide - How to Choose the Right Industrial Mixer
Choosing the right industrial mixer requires answering six key questions about your material, your process, and your facility. Work through these criteria before contacting our team.
Criterion 1 — What type of material are you mixing?
- Free-flowing dry powders and granules → Horizontal ribbon mixer (default choice)
- Fragile materials — coated granules, crystals, sensitive actives → Vertical mixer or conical screw mixer
- Sticky or semi-cohesive materials → Paddle mixer or ribbon + paddle combination
- Cohesive powders that do not flow freely → Plough mixer — mechanical fluidization required
- Materials with very wide density differences (3:1 or greater) → Plough or double shaft paddle mixer
- Heat-sensitive materials requiring drying → Vacuum dryer/mixer
Criterion 2 — What batch size do you need?
Formula: Required mixer size (cu ft) = Batch weight (lbs) ÷ Bulk density (lbs/cu ft) ÷ Loading ratio (0.40–0.70) your paragraph here
Criterion 3 — How sensitive is your material to shear?
- Very shear-sensitive → Conical screw or vertical mixer
- Moderately shear-sensitive → Horizontal ribbon or paddle mixer
- Requires shear to blend (cohesive) → Plough mixer
Criterion 4 — Do you need to add liquids during mixing?
- Small liquid addition (under 5% of batch) → Ribbon mixer with spray nozzle
- Significant liquid addition — wet granulation → Plough mixer with high-pressure spray nozzles
Criterion 5 — What are your cleaning and compliance requirements?
- General industrial → Standard manual gate discharge, standard seal
- Food processing → CIP spray system, #4 finish, pneumatic discharge
- Allergen-controlled → Bomb bay discharge or conical screw mixer for near-zero residual
- Pharmaceutical GMP → CIP spray, #7 mirror polish, mechanical seals, PLC with 21 CFR Part 11 data logging
Criterion 6 — Do you need temperature control during mixing?
- Ambient temperature → Standard mixer, no jacket needed
- Heating during mixing → Jacketed mixer — steam, hot water, or thermal oil
- Cooling during mixing → Jacketed mixer — chilled water
- Drying at low temperature → Vacuum dryer/mixer
- Oxygen-sensitive material → Vacuum dryer/mixer with inert gas purge
Common Material Bulk Densities - Reference Guide
| Material | Bulk density (lbs/cu ft) | Flow | 100 cu ft @ 50% loading | Recommended mixer |
|---|---|---|---|---|
| Fine pharmaceutical powders | 15–30 | Poor — cohesive | 750–1,500 lbs/batch | Horizontal ribbon, conical screw |
| Protein powder (whey, pea) | 20–35 | Fair | 1,000–1,750 lbs/batch | Horizontal ribbon, vertical |
| Flour, starch, milk powder | 30–40 | Good | 1,500–2,000 lbs/batch | Horizontal ribbon mixer |
| Spices and seasoning blends | 35–45 | Good | 1,750–2,250 lbs/batch | Horizontal ribbon mixer |
| Granulated sugar | 50–60 | Excellent | 2,500–3,000 lbs/batch | Horizontal ribbon mixer |
| Table salt | 55–65 | Excellent | 2,750–3,250 lbs/batch | Horizontal ribbon mixer |
| Vitamin and mineral premix | 20–40 | Fair | 1,000–2,000 lbs/batch | Horizontal ribbon mixer |
| Pigments (TiO2, iron oxide) | 35–70 | Fair to good | 1,750–3,500 lbs/batch | Horizontal ribbon, paddle |
| Fertilizer granules (NPK) | 55–75 | Good | 2,750–3,750 lbs/batch | Horizontal ribbon, double shaft |
| Animal feed premix | 30–50 | Good | 1,500–2,500 lbs/batch | Horizontal ribbon, double shaft |
| Calcium carbonate powder | 50–70 | Good | 2,500–3,500 lbs/batch | Horizontal ribbon mixer |
| Silica powder (fumed) | 4–15 | Very poor — cohesive | 200–750 lbs/batch | Plough mixer |
| Metal powders (iron, aluminum) | 100–200 | Good | 5,000–10,000 lbs/batch | Horizontal ribbon, paddle |
| Dry mortar / construction | 65–90 | Good | 3,250–4,500 lbs/batch | Horizontal ribbon, double shaft |
